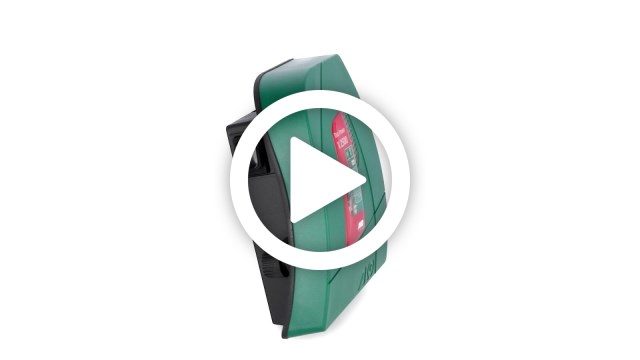

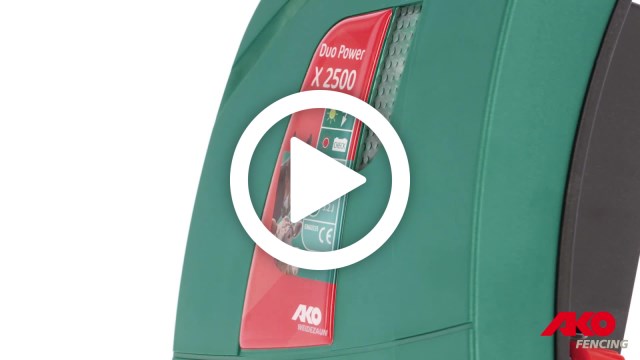

Duo Power X 2500

12 V / 230 V DUO unit with high output
for normal fence systems with low vegetation

Fence control LED and separate battery warning indicator

recommended solar module: Item number. 375251 (25 Watt), connection directly to the 12-Volt battery, mounting e.g. on a metal box

Items

Ref. no.	PU		Pallet
372872	1	1	88 PAL	88 PAL

Accessories

Ref. no.	Description	Width	Depth	Height	PU
375251	Solar Panel incl. charge controller	37.5 cm	2 cm	56 cm	1

optimised power consumption thanks to energy-saving mode
deep discharge protection with 12 V operation
microprocessor controlled
plug connector with screw fuse
robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics
integrated hanging device for wall mounting
very bright, clearly visible LED light
corresponds to applicable EU safety standards
(suitable for metal box 44656 and 44650)

Model	Ref. no.	Stored Energy		max. discharge energy		max. voltage		Voltage in Open Circuit		Voltage at 500 Ohms		theoretical fence length as per VDE		max. fence length without vegetation		max. fence length with medium vegetation		max. fence length with high vegetation		Approx. Number of Electrifiable Nets		Qty 1 m earth posts		Power Consumption
X 2500	372872	3.2 J	3.2 J	2.5 J	2.5 J	9600 V	9600 V	8300 V	8300 V	6400 V	6400 V	70 km	70 km	18 km	18 km	4 km	4 km	1.7 km	1.7 km	10	10	2	2	75 mA - 193 mA	75 mA - 193 mA

1 x fence unit
1 x 230 volt power pack (371023)
1 x 12-Volt connection cable (E268739)
1 x ground connector cable
1 x fence connector cable

Preview image	Item. No.	Description	372872
	AKO268861	Knurled nut M8 BIG black	x
	AKO268862	Knurled nut M8 BIG red	x
