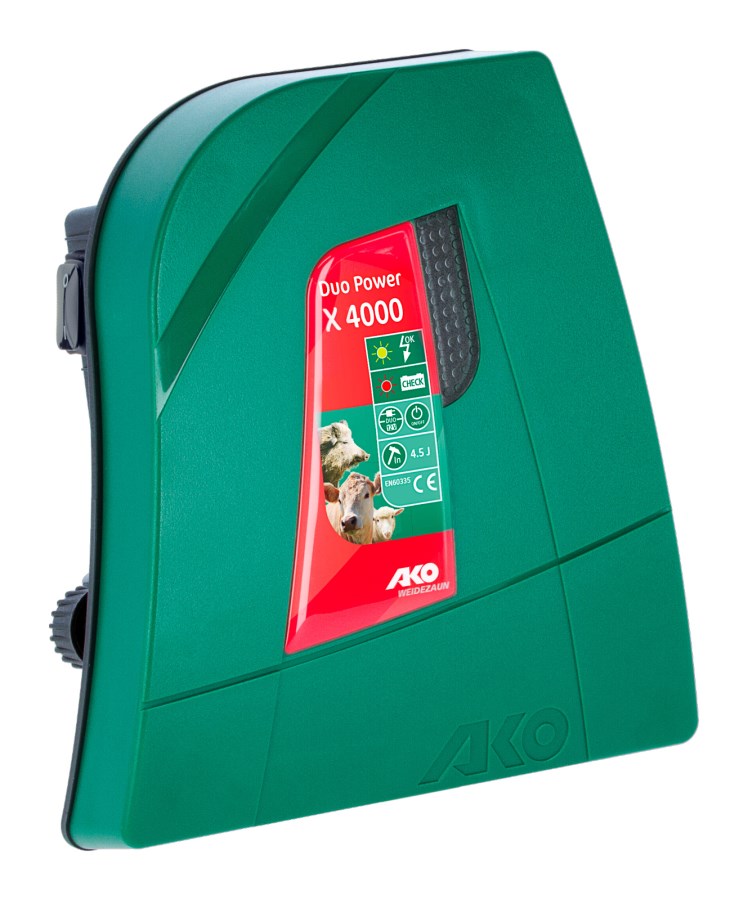

Duo Power X 4000

12 V / 230 V DUO device with extremely high output power
for longer fences, also with vegetation
ideal for use also with strong animals and for keeping wild boar and wolves at bay

multi-colour LED bar graph display for output voltage and battery control

recommended solar module: Item number. 375251 (25 Watt), connection directly to the 12-Volt battery, mounting e.g. on a metal box or: Item number 375559 (55 Watt), connection directly to the 12-Volt battery plus ground anchor kit 442382 or fixing set 442386 for metal box

Items

Ref. no.	PU		Pallet
372874	1	1	88 PAL	88 PAL

optimised power consumption thanks to energy-saving mode
deep discharge protection with 12 V operation
microprocessor controlled

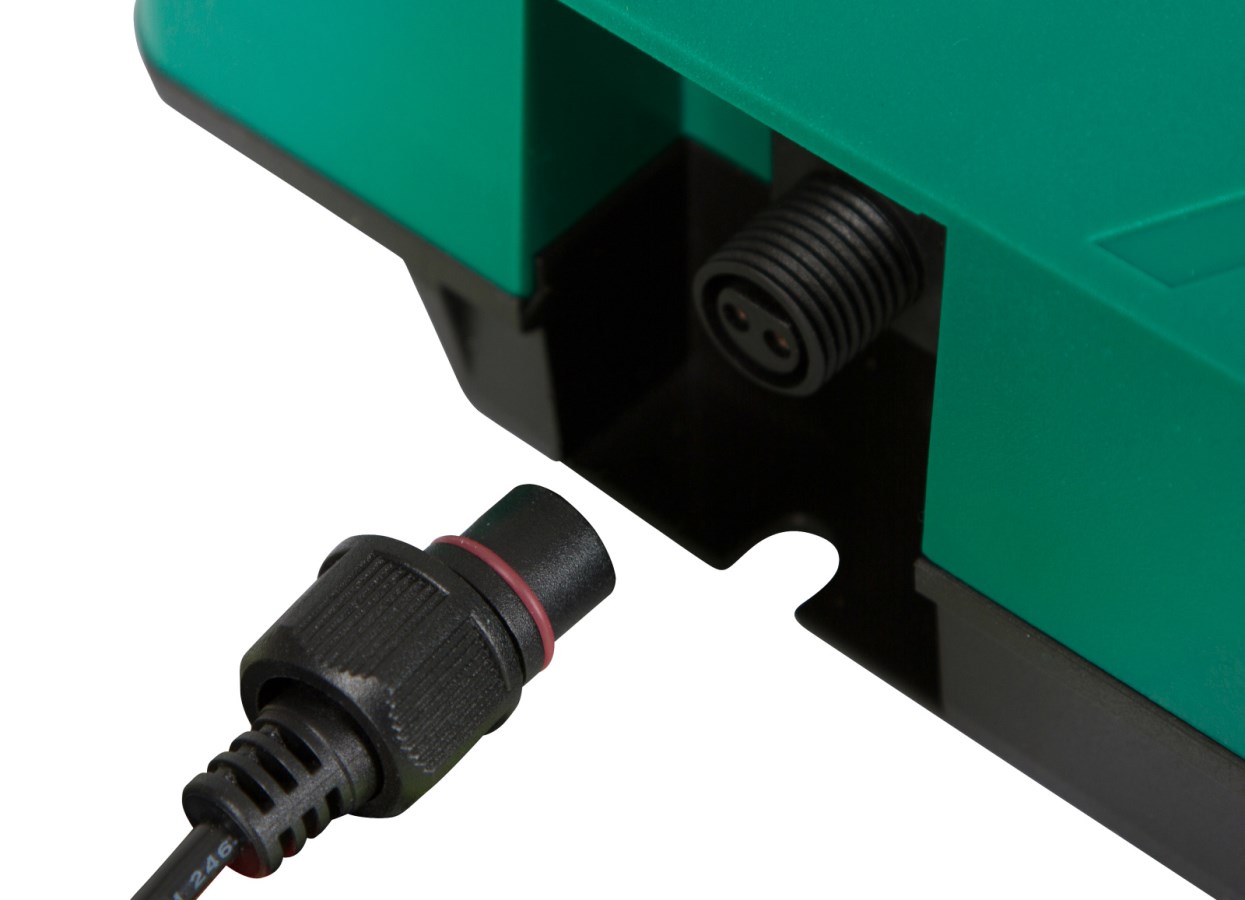

plug connector with screw fuse
robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics

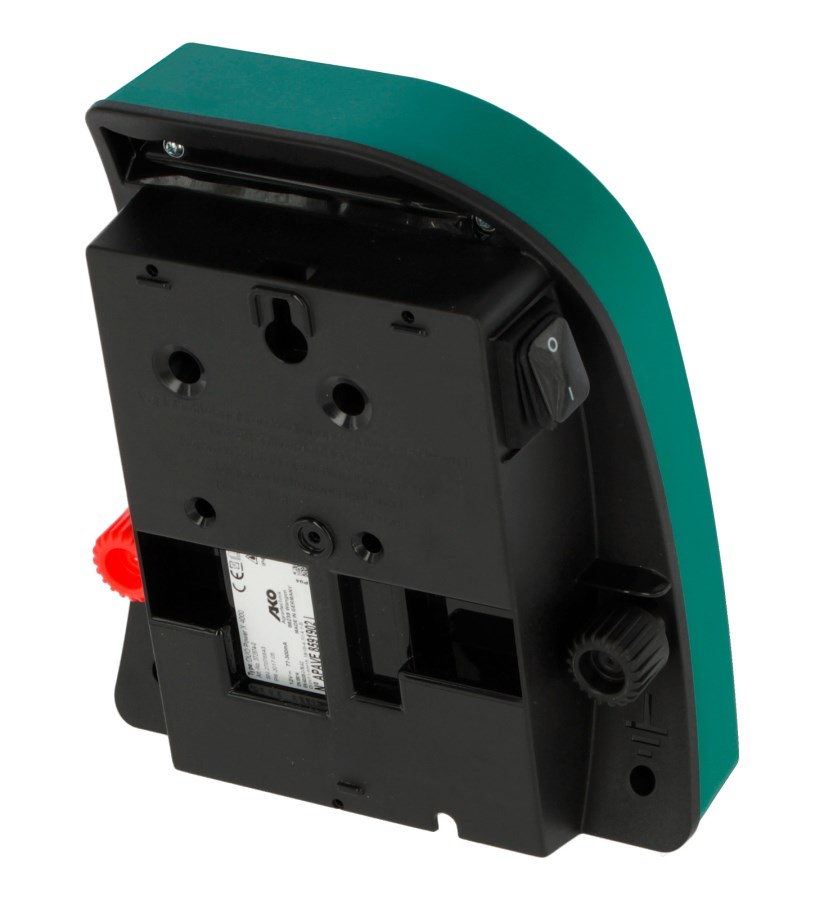

integrated hanging device for wall mounting
very bright, clearly visible LED light
corresponds to applicable EU safety standards
(suitable for metal box 44656 and 44650)

Model	Ref. no.	Stored Energy		max. discharge energy		max. voltage		Voltage in Open Circuit		Voltage at 500 Ohms		theoretical fence length as per VDE		max. fence length without vegetation		max. fence length with medium vegetation		max. fence length with high vegetation		Approx. Number of Electrifiable Nets		Qty 1 m earth posts
X 4000	372874	5.5 J	5.5 J	4 J	4 J	11900 V	11900 V	10300 V	10300 V	8400 V	8400 V	110 km	110 km	35 km	35 km	9 km	9 km	4 km	4 km	16	16	2	2

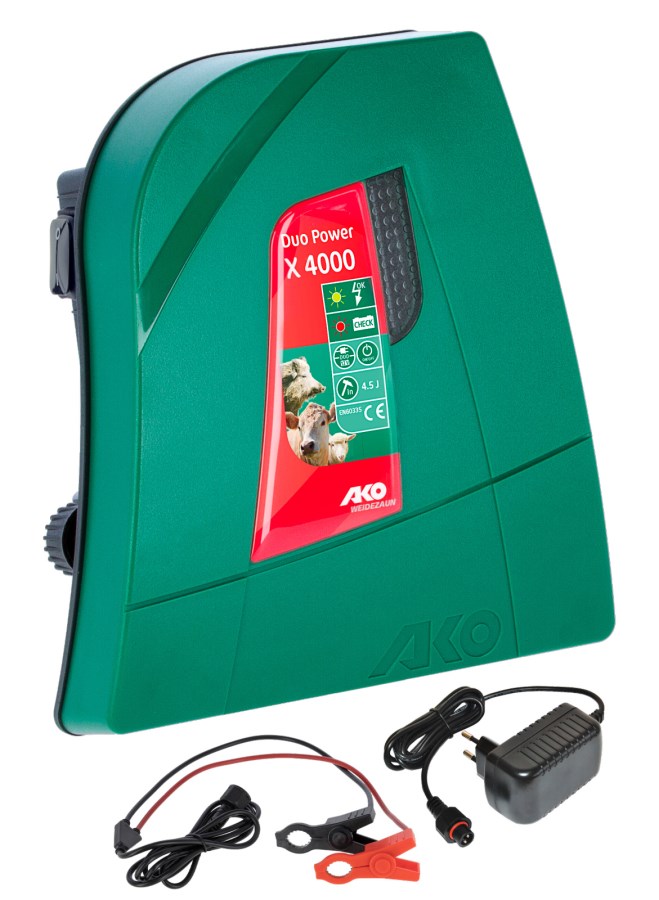

1 x fence unit
1 x 230 volt power pack (371023)
1 x 12-Volt connection cable (E268739)
1 x ground connector cable
1 x fence connector cable
1 x warning sign (44623)

Item. No.	Description	372874
AKO268739	Connector Cable 12 V for DUO	x
AKO268861	Knurled nut M8 BIG black	x
AKO268862	Knurled nut M8 BIG red	x

Duo Power X 4000

Items

Further information

Specific data

Scope of delivery / set

Spare parts
