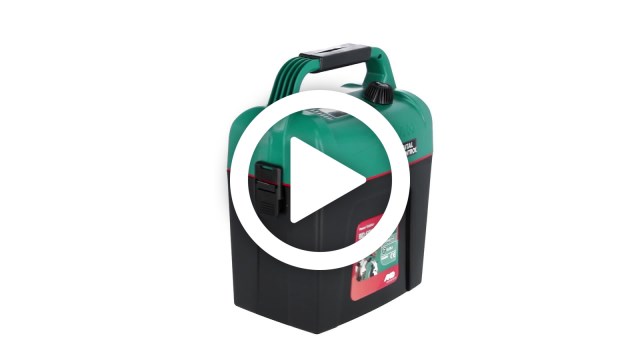

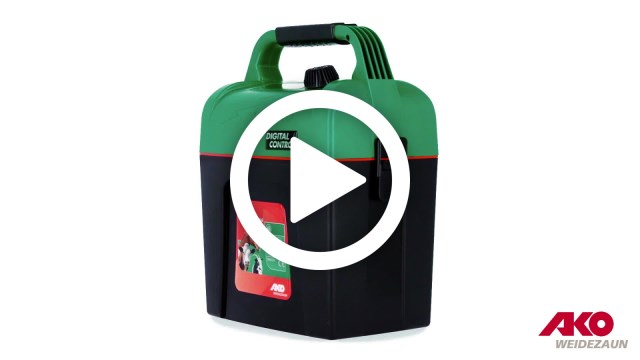

Power Station BD 600 digital

our most powerful 9 V battery unit for longer fences and heavy vegetative growth
highest discharge energy ensures optimum tending safety

Foal Protection Switch

Digital display for fence and battery voltage. LED bar graph supports fence voltage control.

Ref. no.	PU		Pallet
372036	1	1	54 PAL	54 PAL

large digital display on top of the device gives the user all key information at a glance – even in darkness
automatic mode – minimal energy consumption thanks to optimised, independent adjustment of the output power in line with the fence length and status. Battery consumption is therefore minimal and optimum security is maintained over a very large fenced area
can be operated via 230 V power pack
allows for optional operation with 12 V battery – with deep discharge protection
robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics
very bright, clearly visible LED light
corresponds to applicable EU safety standards

Model	Ref. no.	Stored Energy		max. discharge energy		min. discharge energy		max. voltage		Voltage in Open Circuit		Voltage at 500 Ohms		theoretical fence length as per VDE		max. fence length without vegetation		max. fence length with medium vegetation		max. fence length with high vegetation		Qty 1 m earth posts		Power Consumption
BD 600 digital	372036	0.7 J	0.7 J	0.55 J	0.55 J	0.2 J	0.2 J	11700 V	11700 V	10700 V	10700 V	4100 V	4100 V	18 km	18 km	10 km	10 km	7 km	7 km	2 km	2 km	1	1	13 mA - 61 mA	13 mA - 61 mA
