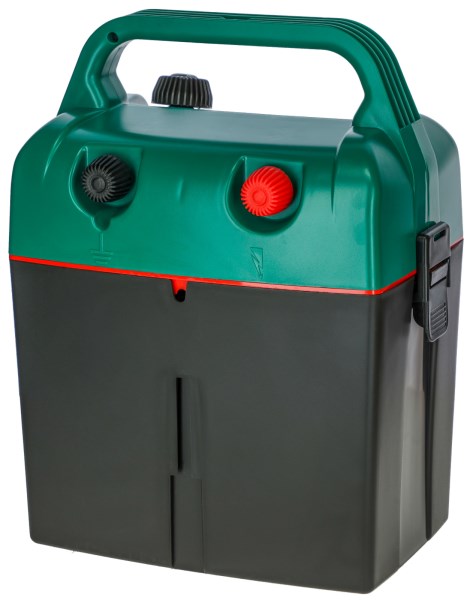

Power Station BD 300 digital

Digital display for fence and battery voltage. LED bar graph supports fence voltage control.

Ref. no.	PU	Pallet
372033	1	54 PAL

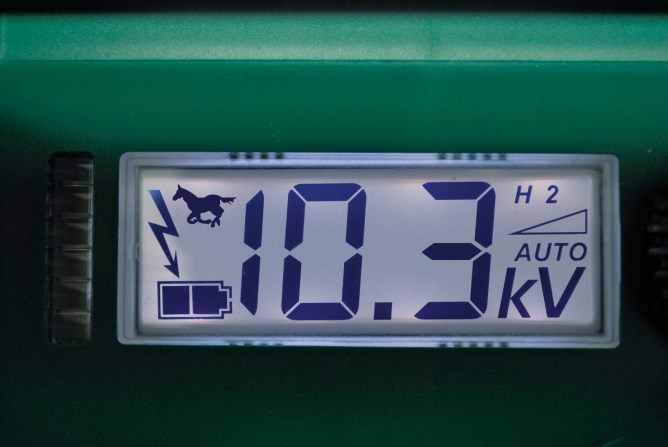

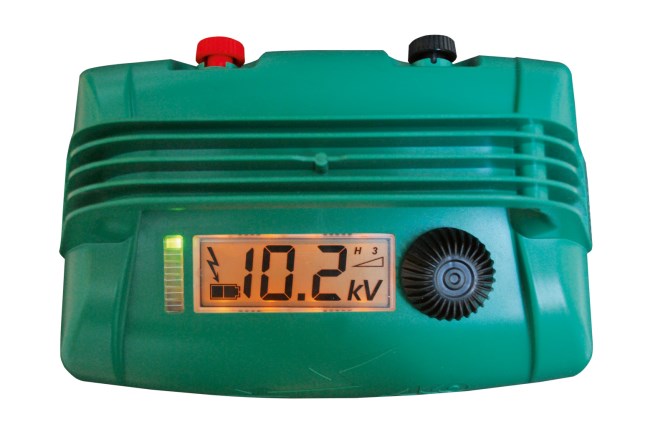

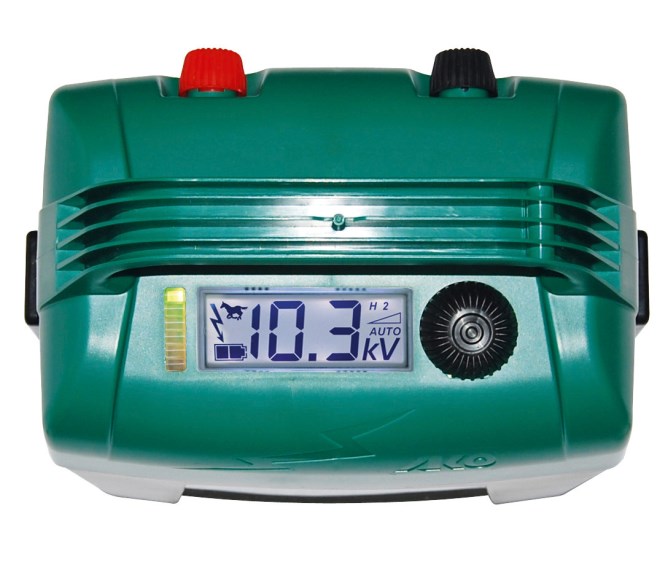

large digital display on top of the device gives the user all key information at a glance – even in darkness
automatic mode – minimal energy consumption thanks to optimised, independent adjustment of the output power in line with the fence length and status. Battery consumption is therefore minimal and optimum security is maintained over a very large fenced area
can be operated via 230 V power pack
allows for optional operation with 12 V battery – with deep discharge protection
robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics
very bright, clearly visible LED light
corresponds to applicable EU safety standards

Model	Ref. no.	Stored Energy	max. discharge energy	min. discharge energy	max. voltage	Voltage in Open Circuit	Voltage at 500 Ohms	theoretical fence length as per VDE	max. fence length without vegetation	max. fence length with medium vegetation	max. fence length with high vegetation	Qty 1 m earth posts	Power Consumption
BD 300 digital	372033	0.38 J	0.3 J	0.1 J	11000 V	11000 V	3500 V	10 km	6 km	4 km	1.5 km	1	13 mA - 36 mA
