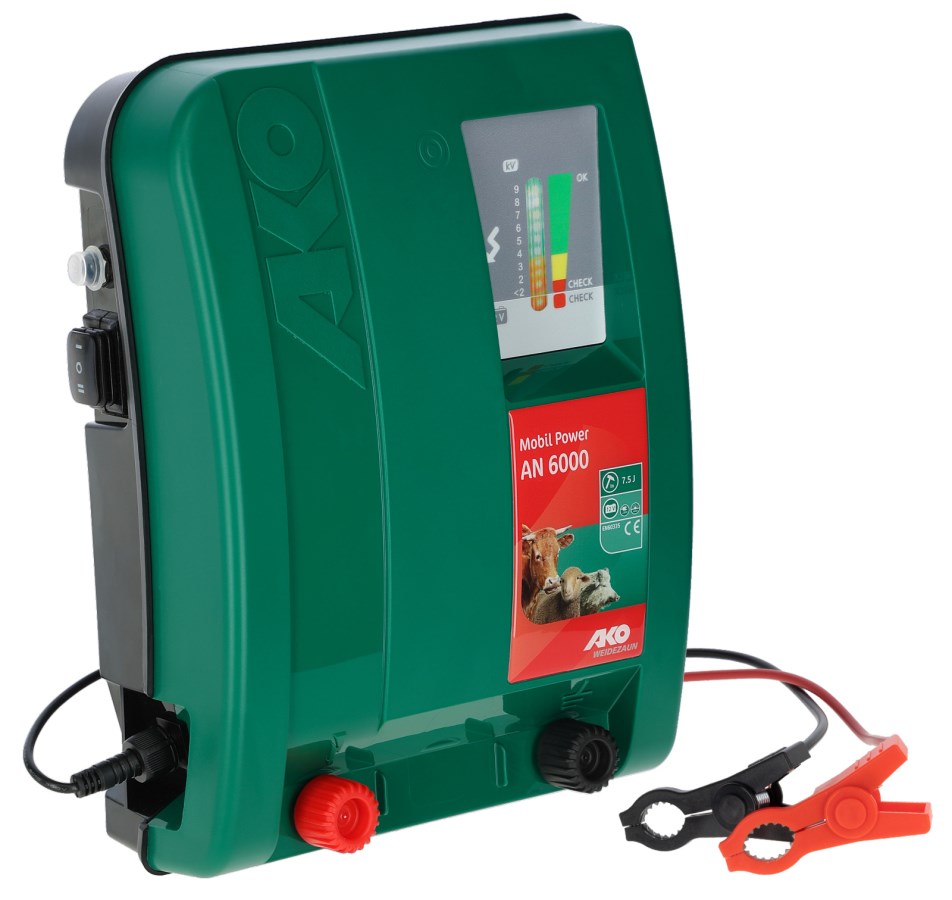

Mobil Power AN 6000

extremely powerful 12 Volt fence device for demanding mobile use
can be used with medium to heavy vegetative growth
our all-round device for more demanding mobile or static applications - ideal for horses, cattle, sheep and deterring wild boars and wolves

with High/Low/OFF switch for 2 different output powers
Solar backup possible
5-year warranty

multi-colour LED bar graph display for output voltage and battery control

recommended solar module: 375559 (55 Watt), connection directly to the 12-Volt battery, optionally with ground anchor 442382 or fixing set 442386 for metal box

Items

Ref. no.	PU		Pallet
372555	1	1	72 PAL	72 PAL

extremely powerful fence device for 12-Volt battery operation
All-round devices for demanding, mobile use
multi-colour LED bar graph display for monitoring the output voltage
separate LED for battery warning (red)
optimised consumption thanks to energy saving mode – saves battery power in fences in good condition. Also intelligent battery management for when battery voltage decreases.
deep discharge protection for the 12 volt battery
microprocessor controlled
Solar backup possible
can be operated via a 230-V power pack (371023 - not included)
robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics
integrated hanging device for wall mounting
very bright, clearly visible LED light
corresponds to applicable EU safety standards
(suitable for metal box 44656 and 44650)

Model	Ref. no.	Stored Energy		max. discharge energy		max. voltage		Voltage in Open Circuit		Voltage at 500 Ohms		theoretical fence length as per VDE		max. fence length without vegetation		max. fence length with medium vegetation		max. fence length with high vegetation		Approx. Number of Electrifiable Nets		Qty 1 m earth posts
AN 6000	372555	7 J	7 J	5 J	5 J	12000 V	12000 V	10400 V	10400 V	9000 V	9000 V	130 km	130 km	40 km	40 km	11 km	11 km	6 km	6 km	20	20	2	2

1 x fence unit
1 x fence / ground connector cable
1 x 12-Volt connection cable (E268739)
1 x warning sign
